7th Annual Build Madison – 2016

Build Madison had a great turnout and a wide variety of ideas pitched at the start this year:

  • Brian – Kegerator dispensing system

img_9686

  • Greg – Prosthetic 3d scanning (handheld scanner for ear/other body parts)

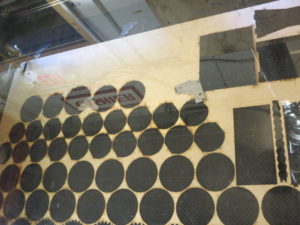

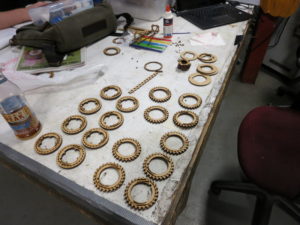

  • Kate – Combination lock laser cut puzzle

img_9682 img_9700 img_9720

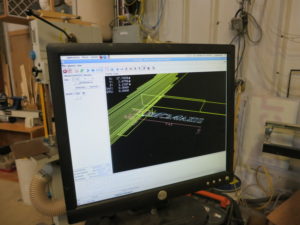

  • Joe – Using recycled skateboards to make artwork, looking to make a block of skateboard deck

img_9661 img_9662 img_9663

  • Xavier – Building a virtual reality system to simulate being taller (camera on top of your head)

img_9746

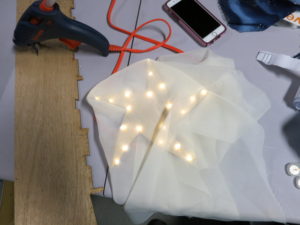

  • Alex – Making some advent star decorations for their church

img_9657 img_9659 img_9678

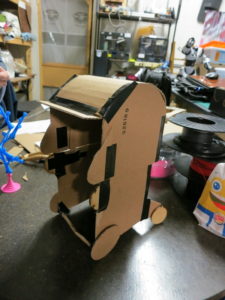

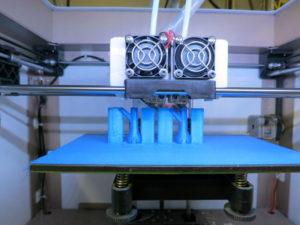

  • Antonio and Lola – Learn 3d printing, build a homeless shelter – portable shelter/rolling cart for homeless

img_9718 img_9738img_9716img_9690

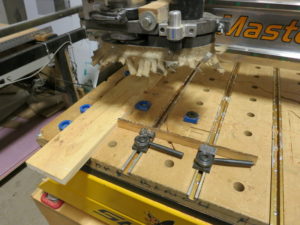

  • Elizabeth – Building cribbage boards out of reclaimed wood

img_9739 img_9740 img_9741 img_9747

  • Jamie – Responsive email templates using Foundation and Sass for Nerd Nite

img_9688

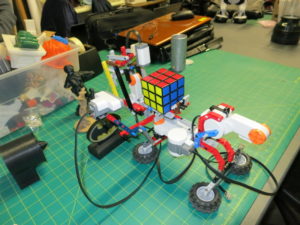

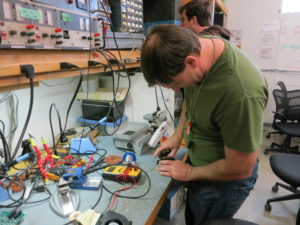

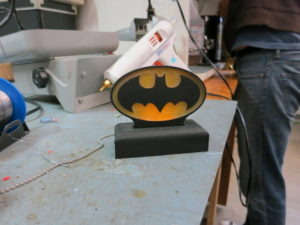

  • Jeff – Lego Rubik’s cube solver, light up bat signal, embroidered patches

img_9660 img_9715 img_9672 img_9670

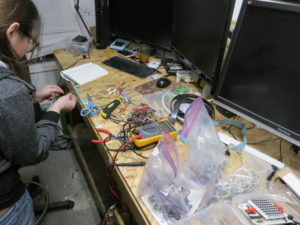

  • Olivia – Create an augmented reality treasure hunt app/game

img_9674 img_9728

img_9730 img_9731

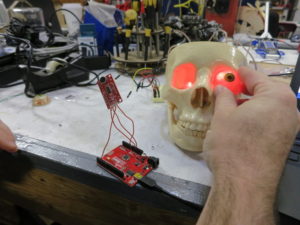

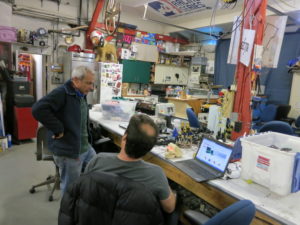

  • Rob – Make a Halloween skull respond to noise/microphone and move the jaw automatically

img_9664 img_9683

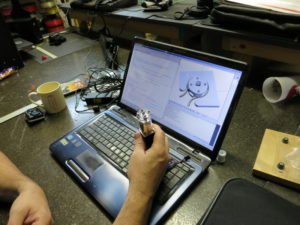

  • Jim – Create a peristaltic pump with no output oscillations/spurts of liquid

img_9762

  • Andrew – Software developer with no projects but happy to help others

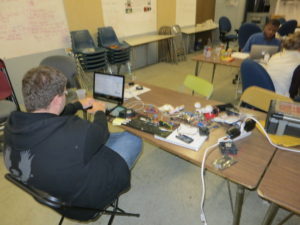

  • Jesse – Terrarium project, some kind of bicycle project

img_9727

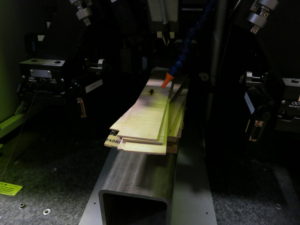

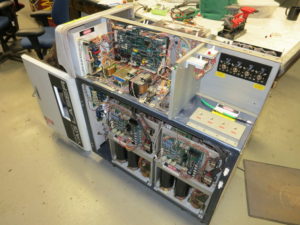

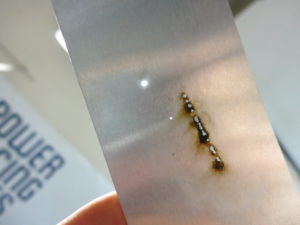

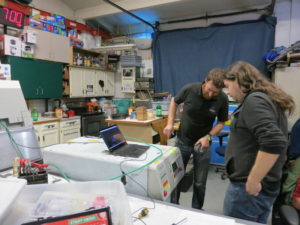

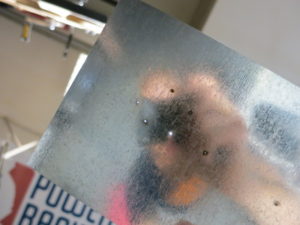

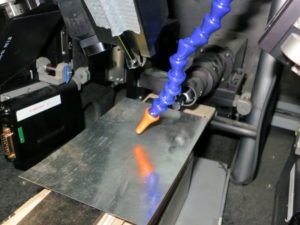

  • Joe – YAG laser project to make it run and burn holes in metal

img_9665 img_9666 img_9693 img_9702 img_9709 img_9712 img_9713 img_9725

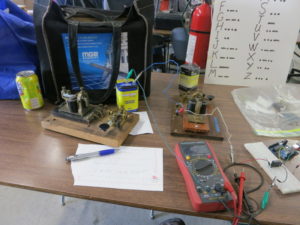

  • Don – Telegraph operator looking for a telegraph playback machine/digital version to run like a player piano

img_9676

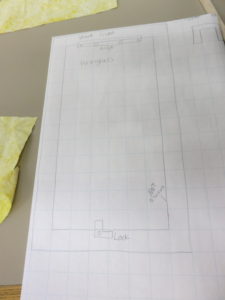

  • Brad – Cat door with lock to keep the cats from eating each others food

img_9732 img_9733

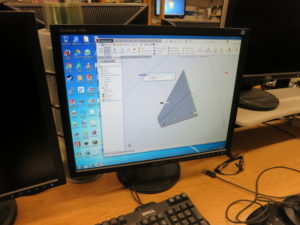

  • Mark – Hopper for a wood stove to keep it feeding pellets overnight

img_9735 img_9736

img_9698 img_9710

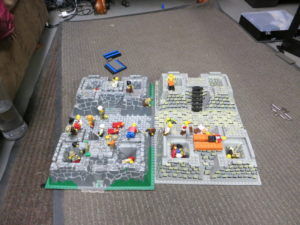

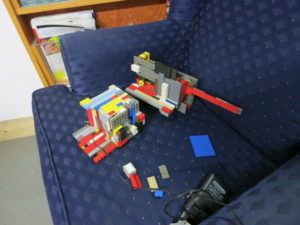

  • Elizabeth and Family – Building Lego robots with retrofitted motors

img_9722 img_9723 img_9745

Finish

At the end of the event we had a lot of great presentations (2 hours worth!), here’s a summary of “completed” ideas.  We had a great turnout for the finale:

img_9772

Olivia and team were up first to demonstrate their augmented reality game that you can find here:

img_9774

img_9768

img_9776

They spent their 24 hours building a working app using GPS gates/targets to only allow players to advance when they were in the right area.  They had some trouble with the GPS accuracy but were working through it.  They were able to demonstrate a working website with a storyline and rewards at the end of the game!

Next up was Joe and Ethan to demonstrate their progress with the YAG laser:

img_9778

img_9757

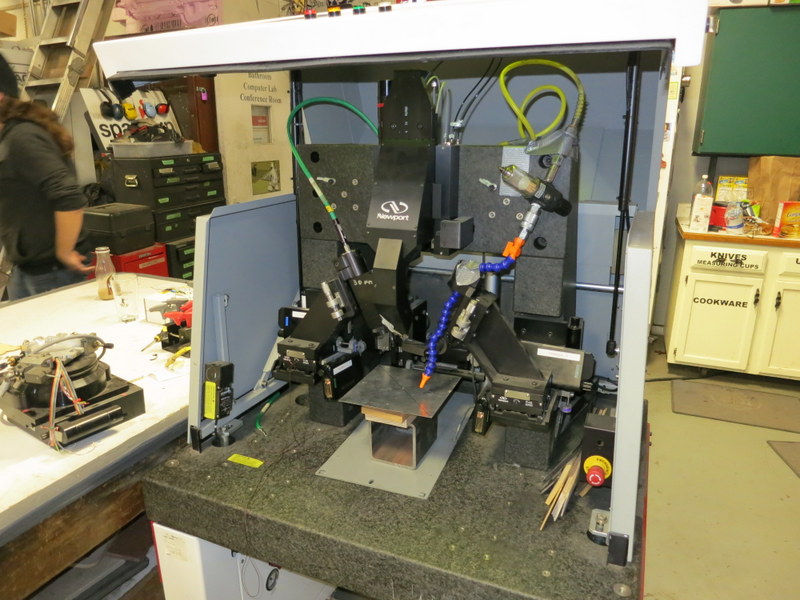

They were able to get a 100W Unitek Miyachi LW100 YAG laser and a Newport LaserWeld Series 4000 cabinet up and running in 24 hours.  The next step is to mount the laser head to an old CNC machine we have so we have a metal cutting CNC laser.

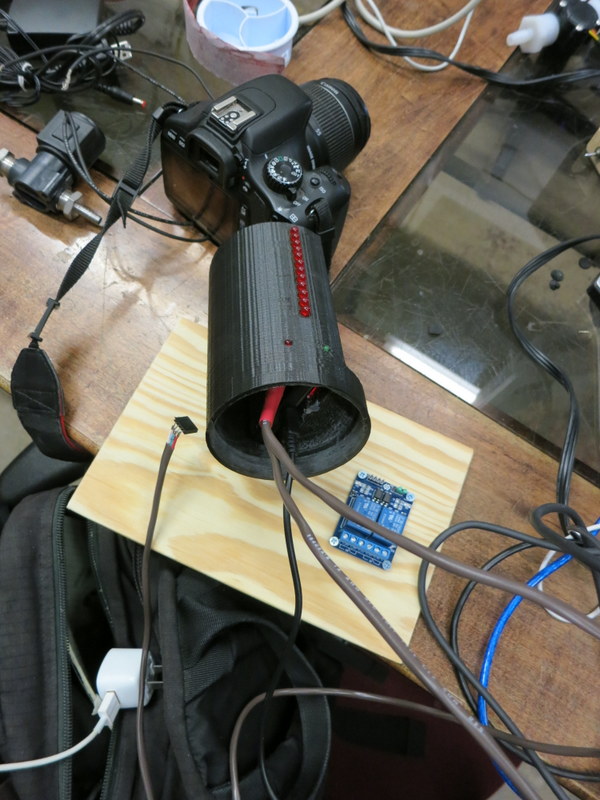

After the laser team, Bob, Brian and Casey talked about setting up a kegerator dispensing system using a Raspberry Pi and a simple LED indicator:

img_9782

img_9760

They were able to 3D print a custom top of the existing tower, program the RPI, and create the electronics needed to interrupt flow to the tap on demand.

Next up was Jeff, never one to be too ambitious:

img_9789 img_9790 img_9791img_9783

Jeff worked through a custom made bat signal (LED flashlight projector), a LEGO Rubiks Cube solver, and a custom patch.  He didn’t quite get started on his caged robot prop, maybe next year!

Joe took the floor next to show off his glued up skateboard deck artwork:

img_9788 img_9793

He used the CNC wood router to “plane” down the edge-glued panel of deck sections and the hydraulic press to make an easier-to-work-with larger block of skateboard decks.

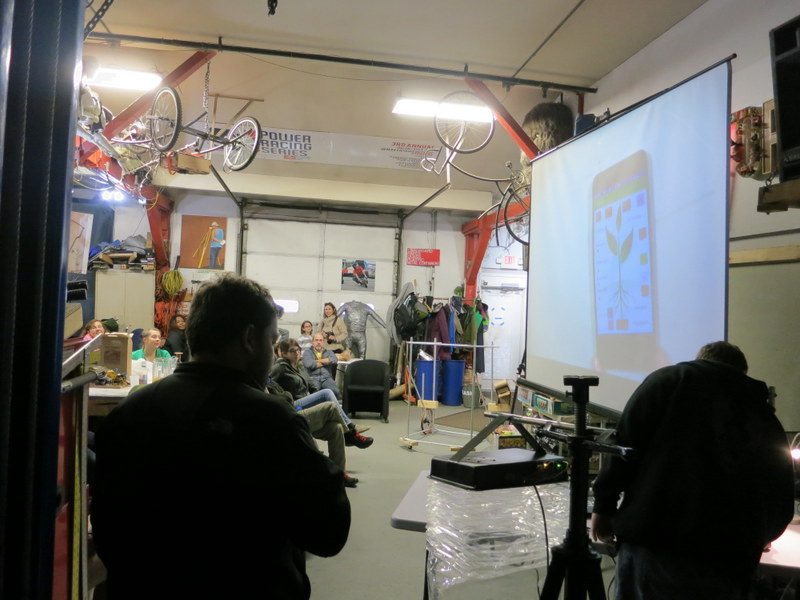

Jesse and his friend showed up with an ambitious goal of building a bluetooth phone-app controlled greenhouse system:

img_9795

img_9761img_9797

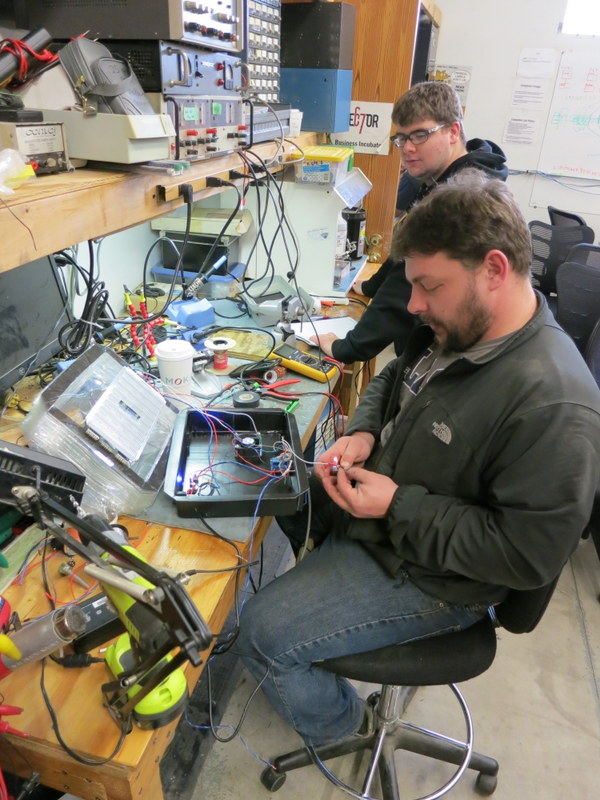

They delivered with a nice looking application (visible on the projector in the background) and a humidity/temperature/air/light controlled environment – next step is to install some plants and see how it works!

Rob and his son delivered a jaw dropping performance:

img_9798

with their Arduino controlled, sound reactive, skull.  They used a Sparkfun sound module wired to an Arduino to gather in ambient sound level.  They then mapped the sound input to a servo that was connected to the jaw, so every time the controller heard a loud sound the jaw would react.  Their next step is to tune the jaw response and experiement with a variety of microphone set ups.

Xavier decided that vertically challenged folks should be able to see if the top of your refrigerator is clean or not:

img_9799

While a relatively simple build – total build time was tightening 3 zip ties to an Oculus, a stereo webcam, and a stick, the software took a little longer to iron out.  He used the Oculus as an external monitor and just full-screened a Chrome browser window to update the images on the browser, but it turned out a browser wasn’t designed for the abuse to piping the images in was a bit of a challenge.  Having personally tested it, I think it may double as a nausea tester 😉

Xavier and his friends also doubled down on a second project – Don came in with an early 1900’s telegraph key and sounder – these would have been state of the art communications devices about 100 years ago.  Don came into service as his town’s telegraph operator at the onset of WW2 and spent the next 17 years as a full time operator.  Needless to say, he’s more than a little attached to his hobby!  He wanted to create a telegraph sounder that could play back a recording or a pre-determined message:

img_9769 img_9770 img_9801

They succeeded in building a model with a case to contain a 6V battery, an Arduino, and a relay to allow the sounder to play messages or use the telegraph key to key-in input for playback.  Don’s enthusiam is contageous and everybody had a lot of fun helping out with the project.

Elizabeth and her family spent most of the weekend alternating between the LEGOs and the hot glue guns.  With some help from Shira, their vision of an Arduino controlled RC car built from LEGOs came together over course of the event:

img_9803 img_9806

Ultimately they were able to build out a chassis, mount some gearmotors to it and set up an Arduino and a battery pack to make it stand-alone.  Now that it’s running they’re looking to add steering, remote control, and sensors to it as a great project to learn Arduino development from.

Antonio and his daughter set out to create something on the 3D printer this weekend:

img_9810

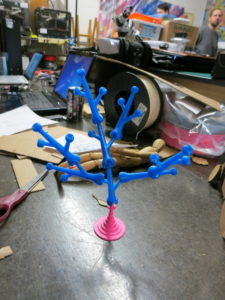

They looked around on Thingiverse and found a cool branching tree with snap-lock segments and printed off about 10 sections.  They realized they didn’t have a base to hold it up, so they recruited Jeff to mashup a few things and made a trumpet-like base with the correct joint to hold it to the branch sections.

Continuing on our LEGO theme, Brett and his son spent some time putting together a lot of bricks:

img_9813

Lovingly coined “The Poking Machine” it featured a reciprocating bar powered by a small DC motor and plug in power supply.  Planned improvements hopefully feature a Saw-Z-All blade and a pitch to LEGO’s sales department.

Nate and Antonio partnered late on Saturday night to prove out a portable shelter concept:

img_9816

img_9759img_9820

Working from a cardboard prototype and starting at 3AM they managed a conduit prototype as a proof of principle.  They’re going to continue to work on it and see if they can get it out to help someone through the winter.

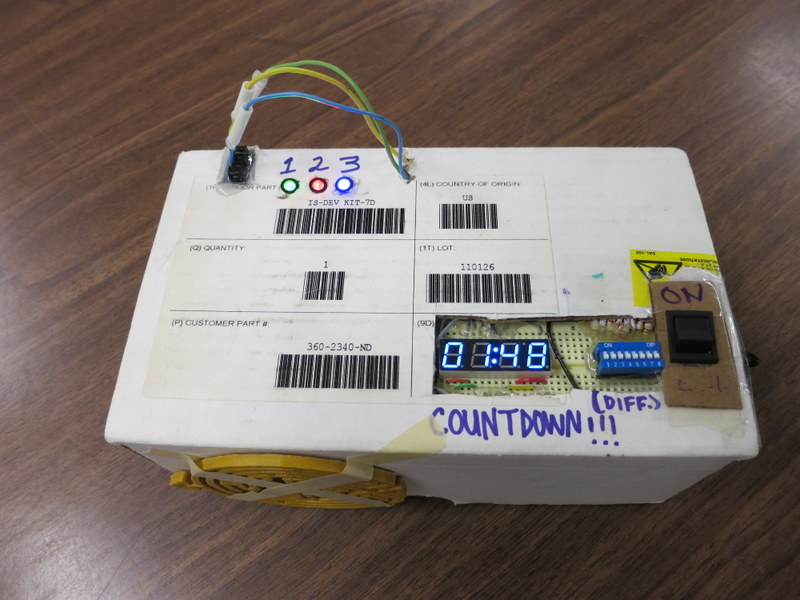

Shira wanted to build an interactive game based on “Keep Talking and Nobody Explodes”:

img_9821 img_9840

She spent a few hours digging through the junk bin to find the parts and several hours with the hot glue gun to build out a functional game.  The cardboard box certainly adds to the “this isn’t a bomb, maybe. . .” factor.

Serial Build Madison alumni Brad (of cat exercise wheel fame) needed to construct a door to his porch to prevent one cat from eating the other cats food.  Originally headed in the direction of a facial recognition system and a lot of electronics, it turned out a more elegant solution was in order:

img_9748 img_9823

He ended up using the sewing machine (for the first time) and some balsa wood to make a simple cat door.  One balsa wood rod can control flow (to allow or lock out access from the porch) and ultimately keep the cat off the porch during feeding time.

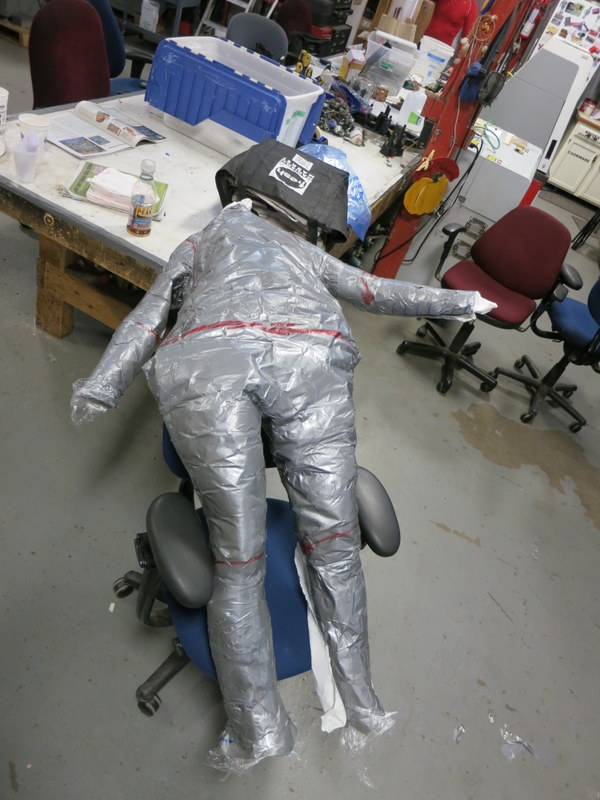

Aaron was in need of a mannekin to hold his latest Halloween costume:

cxuttefusaeekwi img_9752

So he was wrapped up in saran wrap and then duct tape was applied liberally.  Once the form was cut off, he stuffed it with paper and inserted PVC pipes to hold the form.  Now he’s got a stand in to support his Halloween creations in the off season.

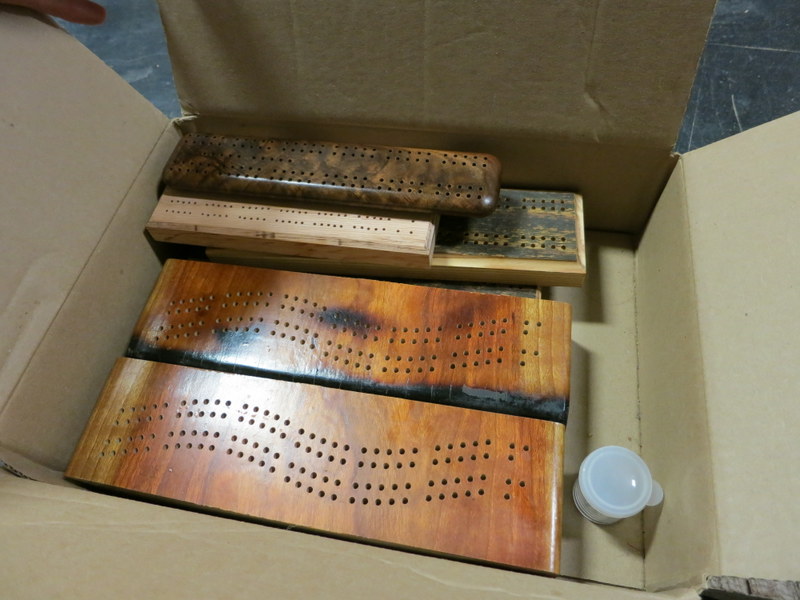

Elizabeth’s goal was to repurpose some wood significant to her friends’ weddings into cribbage boards.  Starting from having little experience in woodworking and vector graphics she was able to make some quick progress this weekend:

img_9739 img_9828

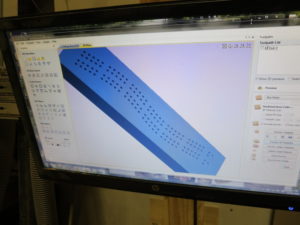

Ultimately she used Adobe Illustrator and VCarve to create the patterns for the laser cutter and CNC wood router to follow.  She varied from the CNC wood router and table router to laser marked and hand drilled depending on the appearance of the wood and surface quality.

Laser extraordinare Kate whipped up a laser cut cryptex puzzle with the help of an Instructables project:

img_9829 img_9830

As is typical, the “looks easy” project turned out to be lacking details in all of the assembly steps, and the instructions were way out of date compared to the design interations resulting in a substantially harder build than expected.  It didn’t help that each ring had every character individually glued on.  Some say they can still hear the glue bottle wheezing and the quiet swearing as the glue lands in the wrong place. . .

Our second to last presenter was Jamie, he spent the weekend in the exact same pose:

img_9688

img_9836

He had to be prodded occasionally but he was indeed alive, he’s just that focused!  He spent a lot of type pulling together a responsive e-mail template for Nerd Nite and ultimately was successful.  E-mails resize automatically depending on screen size and the message drops features based on compatibility so phone readability is just as good as a desktop environment.

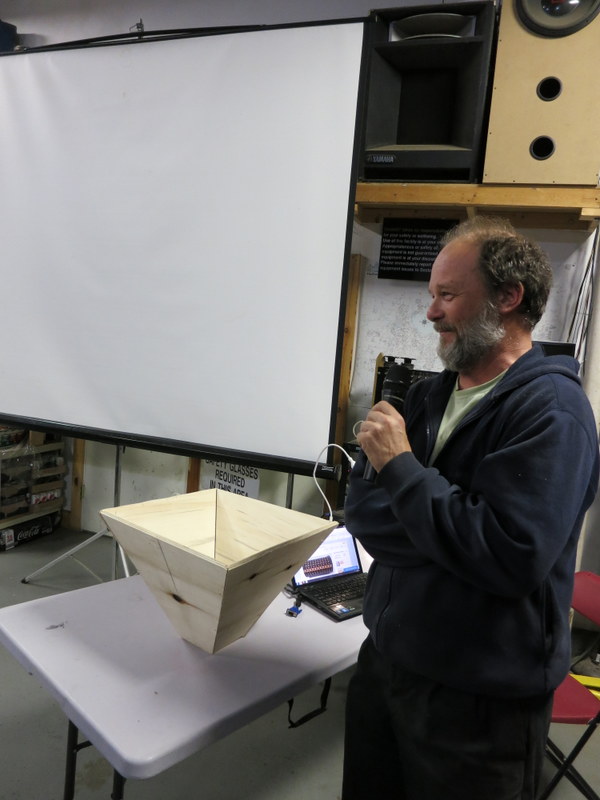

Lastly, Mark moved from concept to reality on a pellet stove hopper:

img_9839

He used Solidworks to create a template for a folded version of the box, but ultimately decided that plywood would be a lot simpler and worth prototyping with first.  He used a sheet of 3/4″ plywood on the CNC router to cut out a pattern and then mitered it on the table saw.  The box went together afterwards and is ready to be stacked on top of the existing feeder to add another bag of capacity.  This means going away on the weekend won’t result frozen pipes.

Thanks to Capital Entrepreneurs for the event sponsorship and great pizza that was throughly enjoyed!

Overall everyone had a great time!  Build Madison is intentionally a low structure event, meaning participants are free to explore their projects and help one-another through out the 24 hours.  We hope to see you next year and hope you enjoyed the projects people were able to make in a short period of time.
