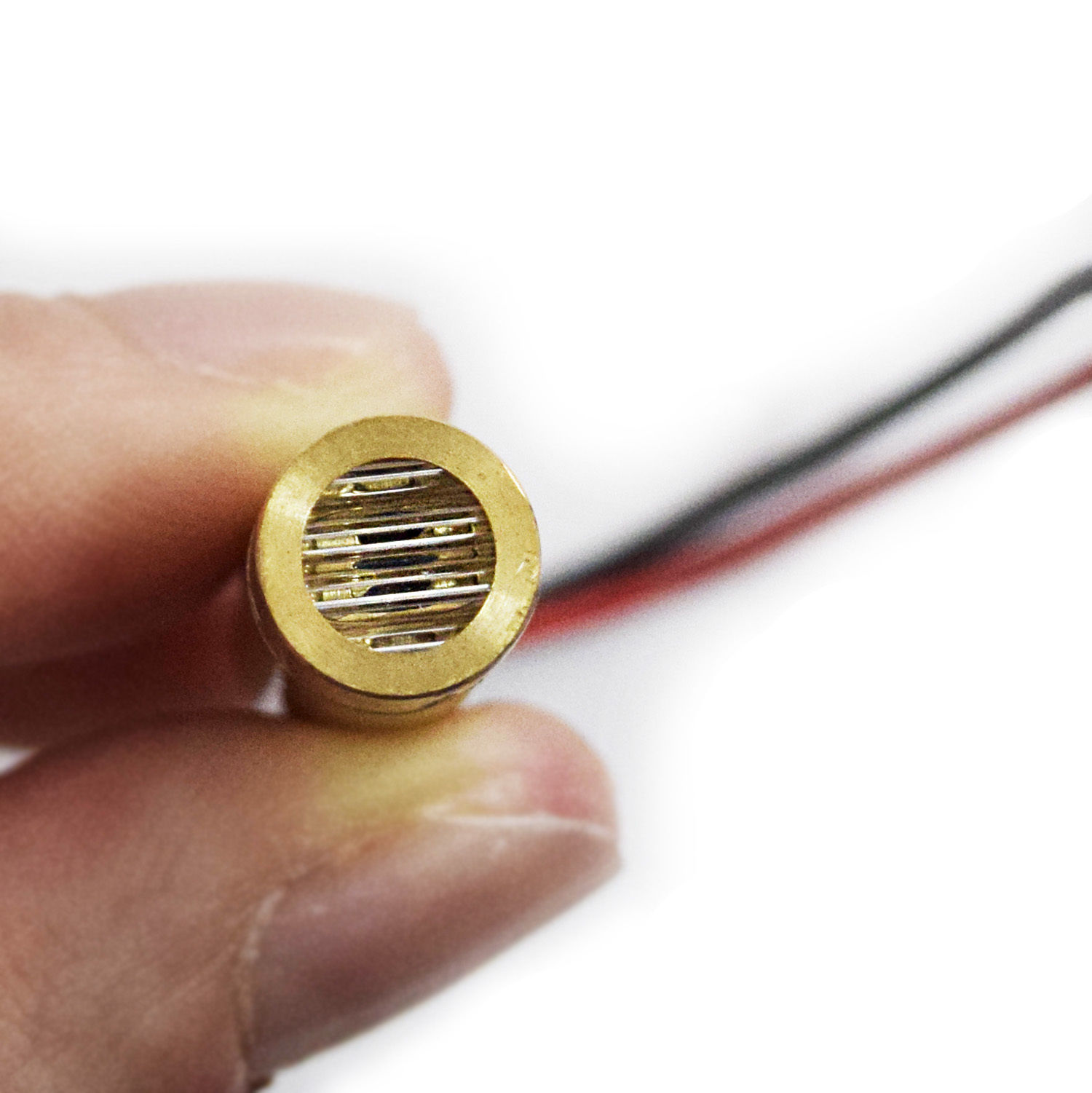

Red Laser Line Module


5 in stock

Categories: ,

Product Description

This is a red laser with optics that cause it to project a line. It required 3VDC to operate and draws under 20mA. The output intensity is under 5mW, making it fairly safe (do not shine into eyes though).

  • Size: 9×23.7mm
  • Wavelength: 650 nm
  • Output Optical Power: < 5mW
  • Operating Voltage: 3V DC
  • Operating Current: < 20 mA
  • Operating Temperature: -36 °C ~ + 65 °C
  • Laser Output Beam: Red Laser Line
  • Line Width: about 1.5-2mm at 1m Distance
  • Line Length: about 2m at 1m Distance
  • Optical Lens: Plastic Lens
  • Life Span: > 1000Hours

Cost here includes all taxes, local pickup only on tour days or please schedule a pickup time via the contact us link at the top right.
