Digital PID Temperature Controller with Solid State Relay and Thermocouple probe cable


1 in stock


Product Description

220V Digital PID Temperature Controller + max. 40A Solid state relay + K Thermocouple Probe Cable

REX-C100 Temperature Controller

  • Measuring accuracy: ±0.5%FS
  • Cold-end compensation tolerance: ±2℃(can be modified by software in 0~50℃)
  • Resolution: 14 bit
  • Sampling cycle: 0.5 Sec
  • Power : AC 220V 50/60HZ
  • Process value (PV), Setting value (SV)
  • Output, alarm and self-tuning can be indicated by:LED
  • PIN control (including ON/OFF, step-type PID and continuous PID)
  • Self-tuning control
  • Relay output: contact capacity 250V AC 3A (resistive load)
  • Alarm function output: 2 way
  • Proportional band (P): 0~full range (ON/OFF control when set to 0)
  • Detective temperature range:0 to 400℃
  • Insulation resistance: >50M ohm(500V DC)
  • Insulation resistance : 1500V AC/min
  • Insulation resistance : Power Consumption < 10 VA
  • Service environment: 0~50℃
  • Environment with no corrosive gas 30~85% RH

K Thermocouple Probe Cable

  • Length: 1M
  • Sensor diameter:4.5mm
  • Temperature rang :0-400℃
  • Internal Insulation: Fiberglass
  • External Shielding: Insulated Shielding

Solid State Relay

  • Output Current: 40A
  • Input Voltage: DC 3-32V
  • Output Voltage: 24-380V AC
  • Output Voltage Range: Standard Type

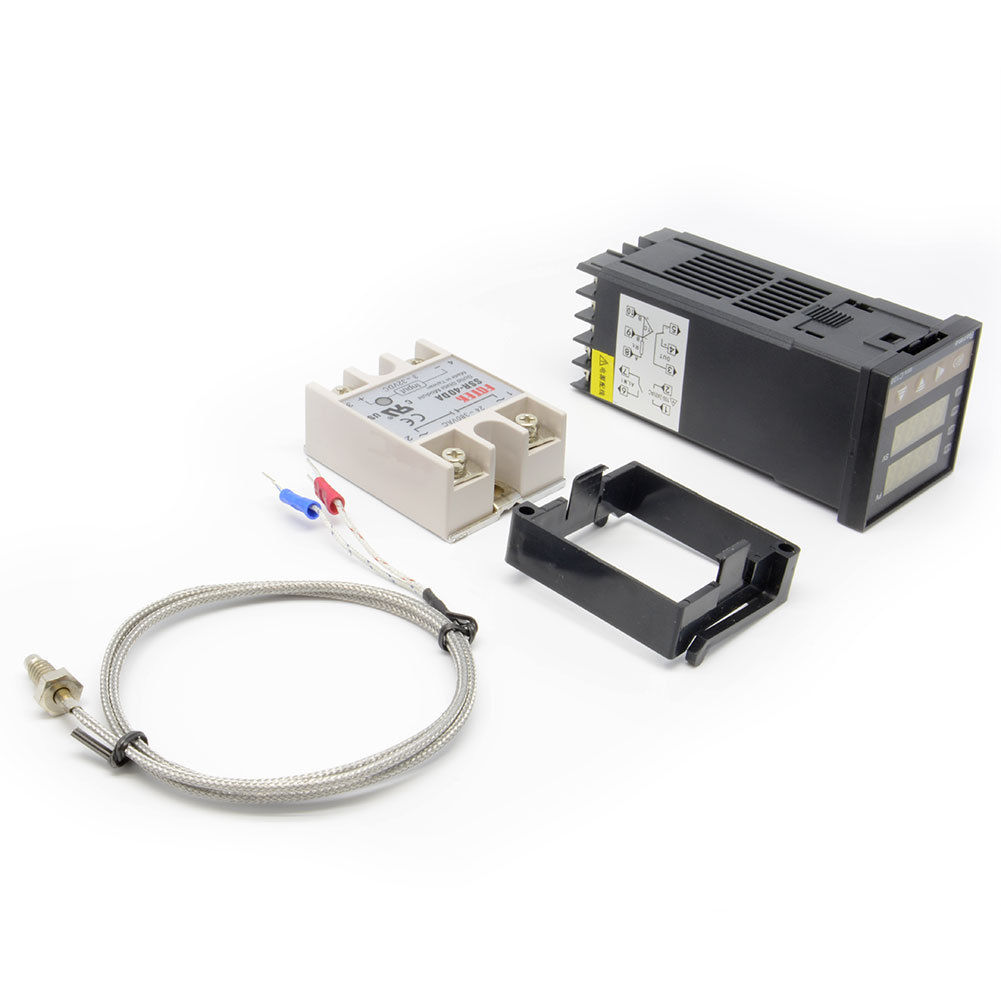

Package Includes:
1 X PID Temperature Controller
1 X K Type Probe Sensor
1 X Max. 40A SSR
