JTAG-USB with SPI, 1.8V to 5.5V

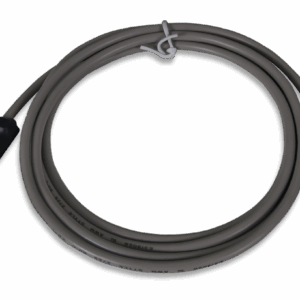

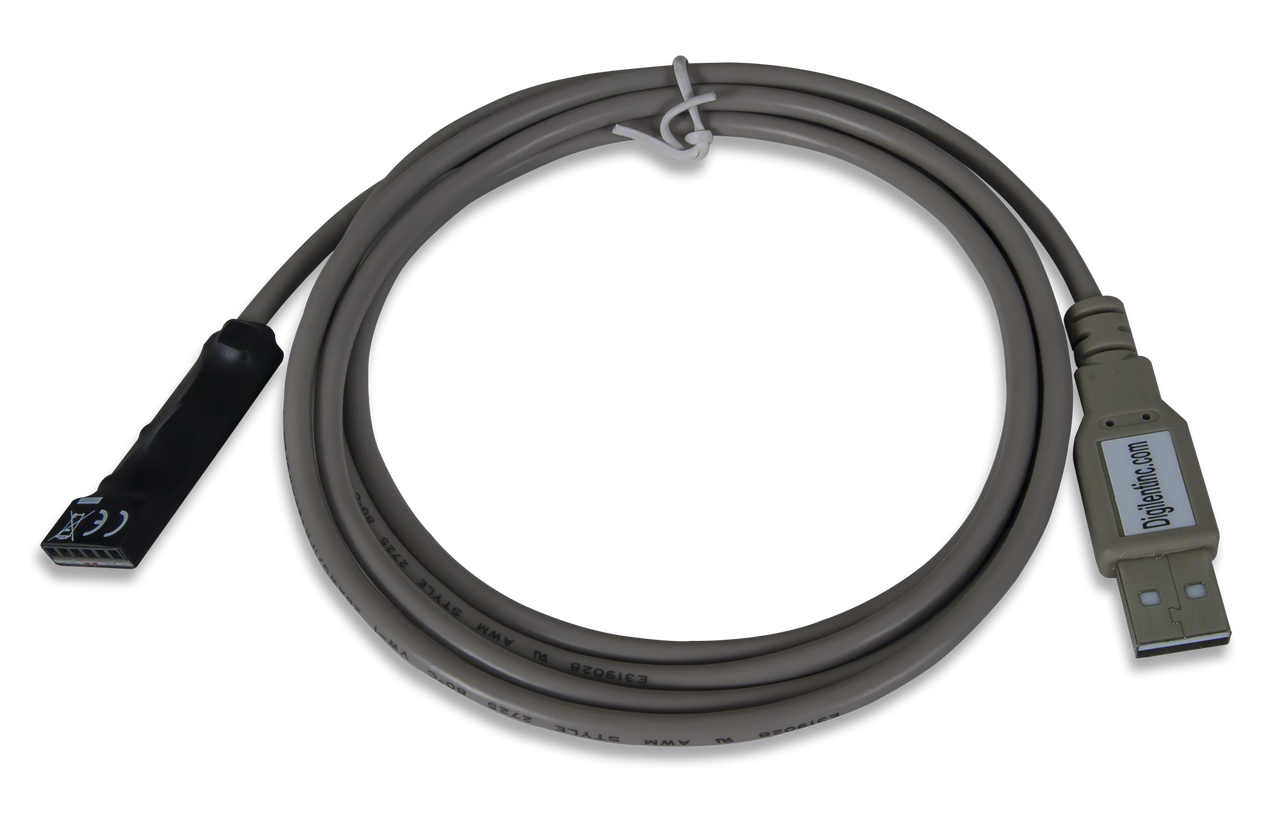

This JTAG-USB cable allows you to use your PC to connect to a JTAG scan chain or to access an SPI interface on a board equipped with the appropriate 6-pin header. This is a cable by Digilent; more information on their site.
JTAG side pinout: TMS, TDI, TDO, TCK, GND, VDD
Cost here includes all taxes, local pickup only on tour days or please schedule a pickup time via the contact us link at the top right.
