Product Description

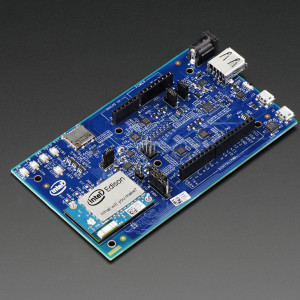

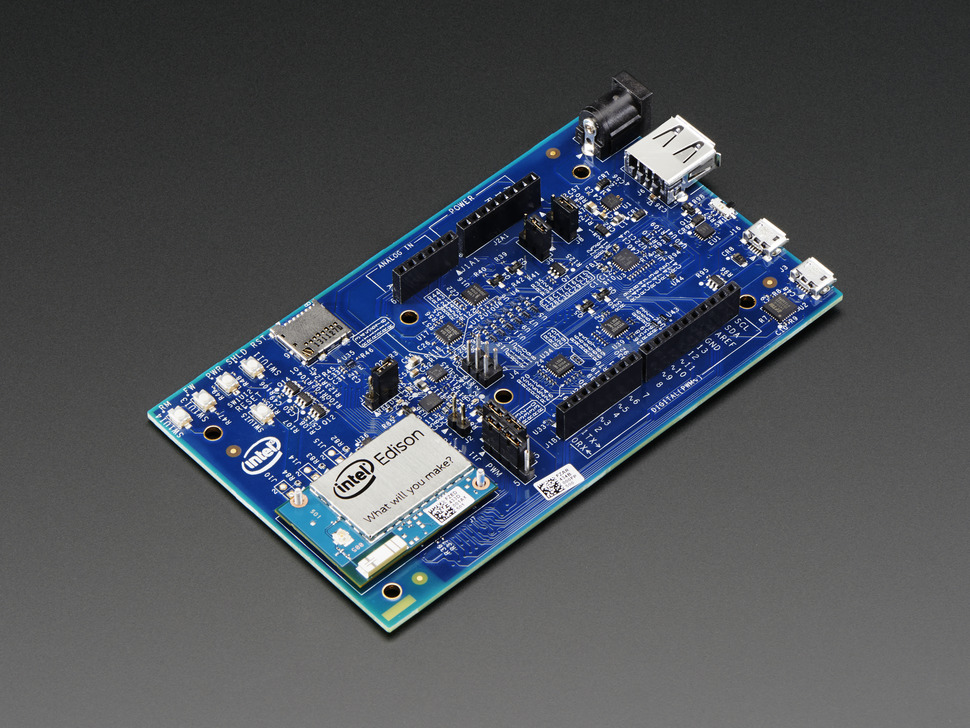

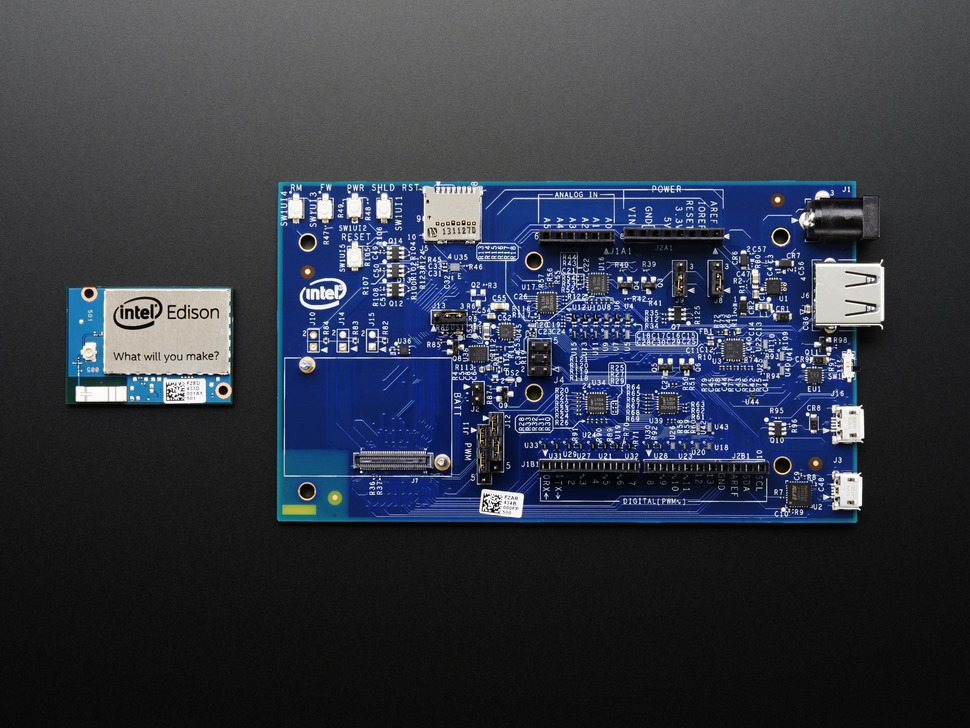

The Intel Edison kit for Arduino is a compact computing platform designed for Internet of Things projects.
- Intel dual core system-on-a-chip, 32-bit 100MHz Intel Quark microcontroller
- supports up to 40 GPIO pins (breakout board has 20 digital I/O pins)
- 1 GB LPDDR3 RAM
- 4 GB EMMC flash memory
- dual band WiFi and Bluetooth Low Energy
- Breakout board supports Arduino Sketch, Linux, Wi-Fi, Bluetooth, and is mostly compatible with the Arduino Uno layout (can connect Arduino breakout boards to this board)
- SD card connector
- micro USB and USB-A
- 6 analog inputs
- UART, I2C, ICSP
- 7V – 15V DC input
Read more at the Adafruit page for this product. http://www.adafruit.com/products/2180
Cost here includes all taxes, local pickup only on tour days or please schedule a pickup time via the contact us link at the top right.
