5V Songle Power Relay


20 in stock


Product Description

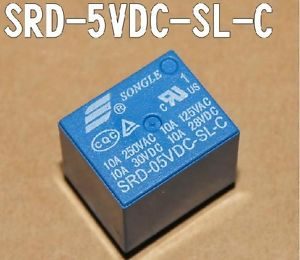

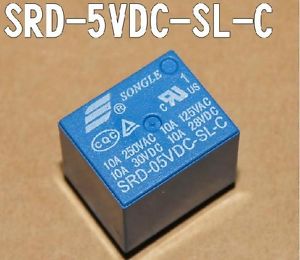

5V DC Power Relay (just the part shown; see other listings to purchase the part as part of a ready-to-use board)

  • Songle SRD-5VDC-SL-C PCB Type
  • Contact form: 1a, 1b, 1c
  • Rated load: 10A 250VAC/28VDC, 10A 125VAC/28VDC, 10A 125VAC/28VDC
  • Contact resistance: <=100m (ohm)
  • Electrical life: 100,000
  • Mechanical life: 10,000,000
  • Coil rated voltage: 3-48VDC
  • Coil power: 0.36W, 0.45W
  • Coil pick-up voltage: <=75%
  • Coil drop-out voltage: >=10%
  • Ambient temperature: -25 degrees Celsius to +70 degrees Celsius
  • Coil and contacts: 1500VAC/min
  • Contact and contacts: 1000VAC/min
  • Insulation resistance: >=100M (ohm)
  • Mounting form: PCB
  • Outline dimensions (mm): 19.0x 15.5 x 15.0

Cost here includes all taxes, local pickup only on tour days or please schedule a pickup time via the contact us link at the top right.
