Xbox Reworking Party and BGA Chip Soldering

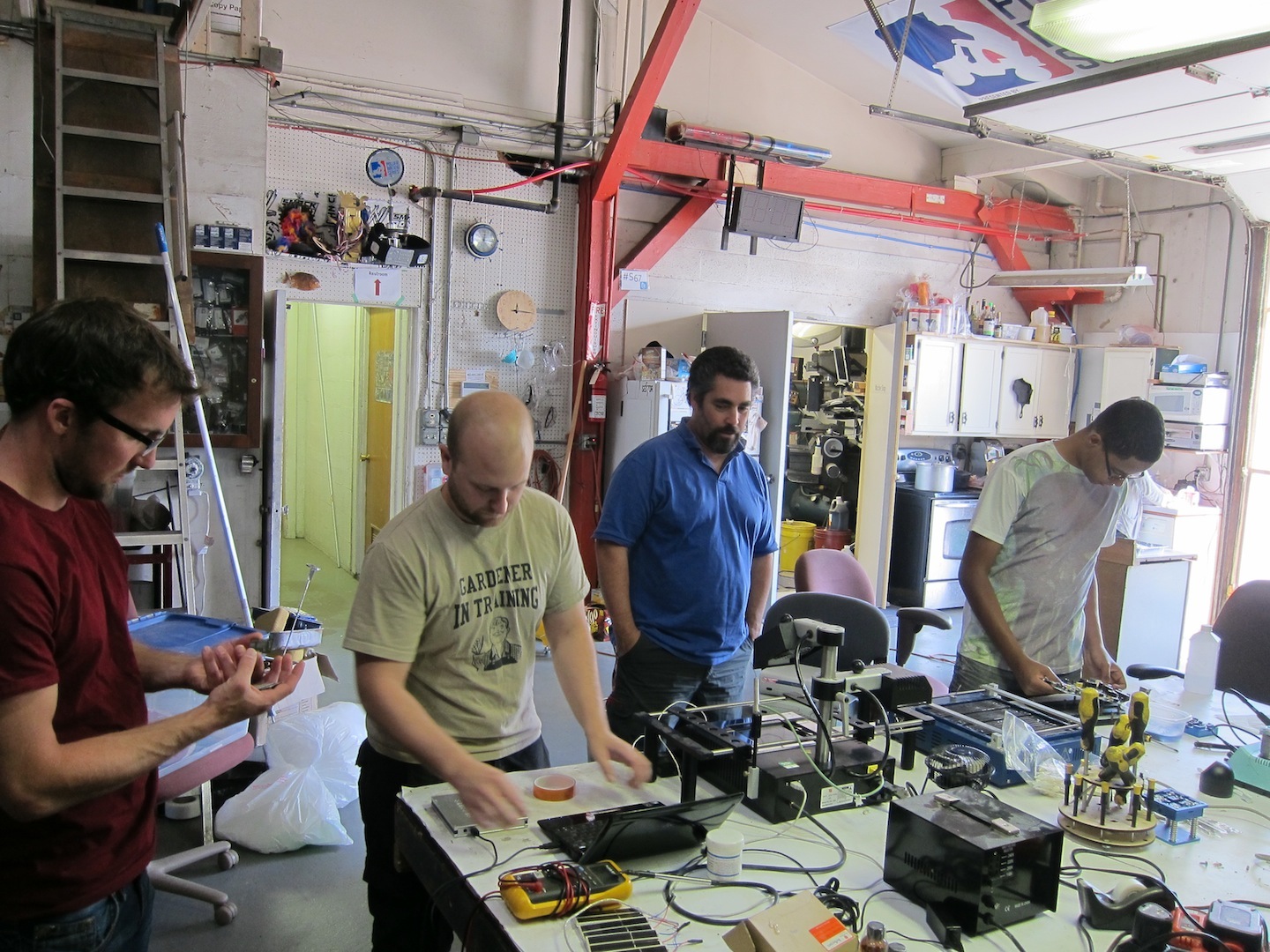

Sector67 recently hosted an Xbox rework and BGA chip soldering class.

The ball grid array (BGA) is a “type of surface-mount packaging used for integrated circuits. BGA packages are used to permanently mount devices such as microprocessors.

In Xbox 360s, the infamous “red ring of death” is often the result of a soldering failure by BGA-mounted graphics card.

IMG_6851

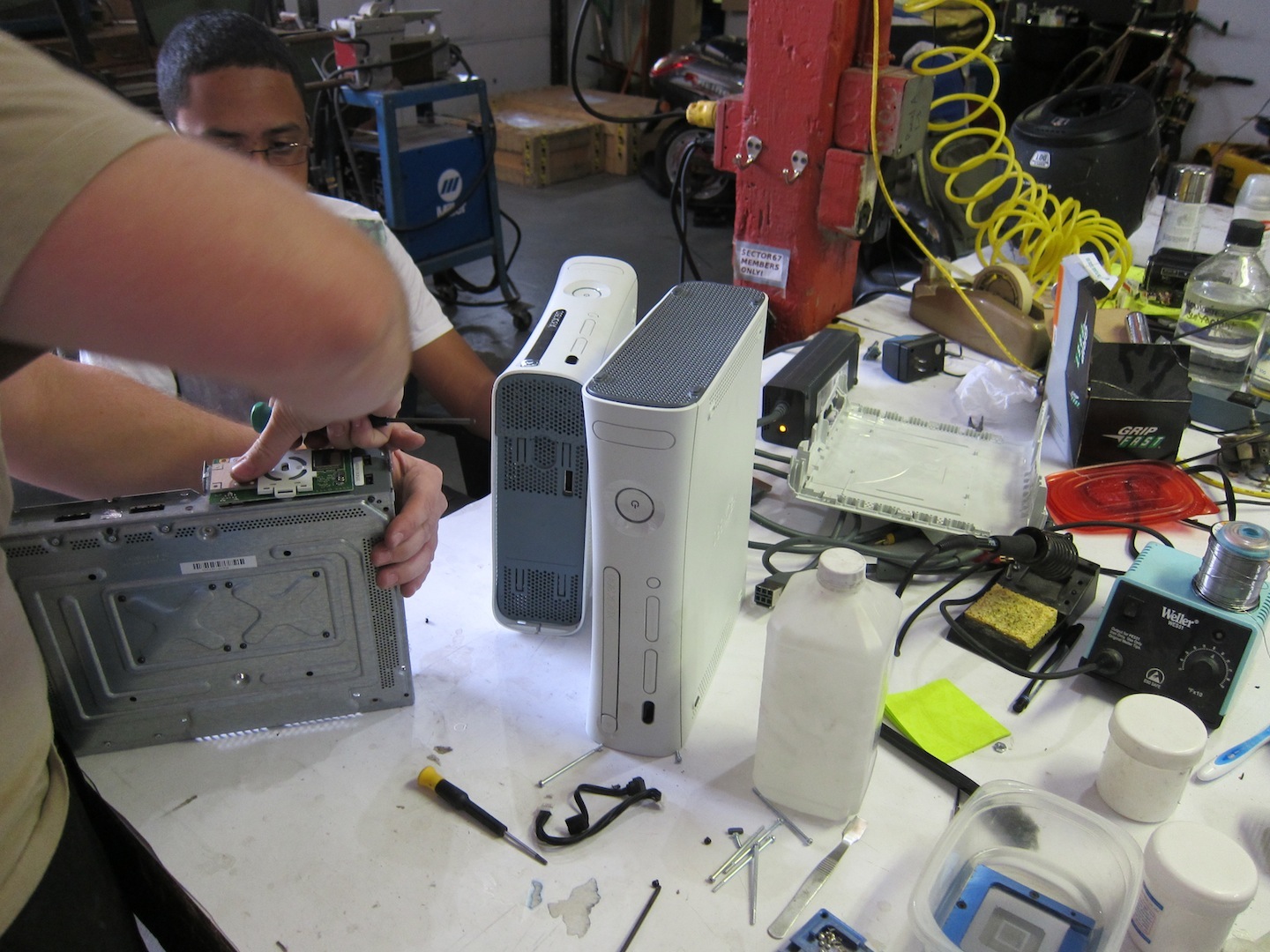

IMG_6854

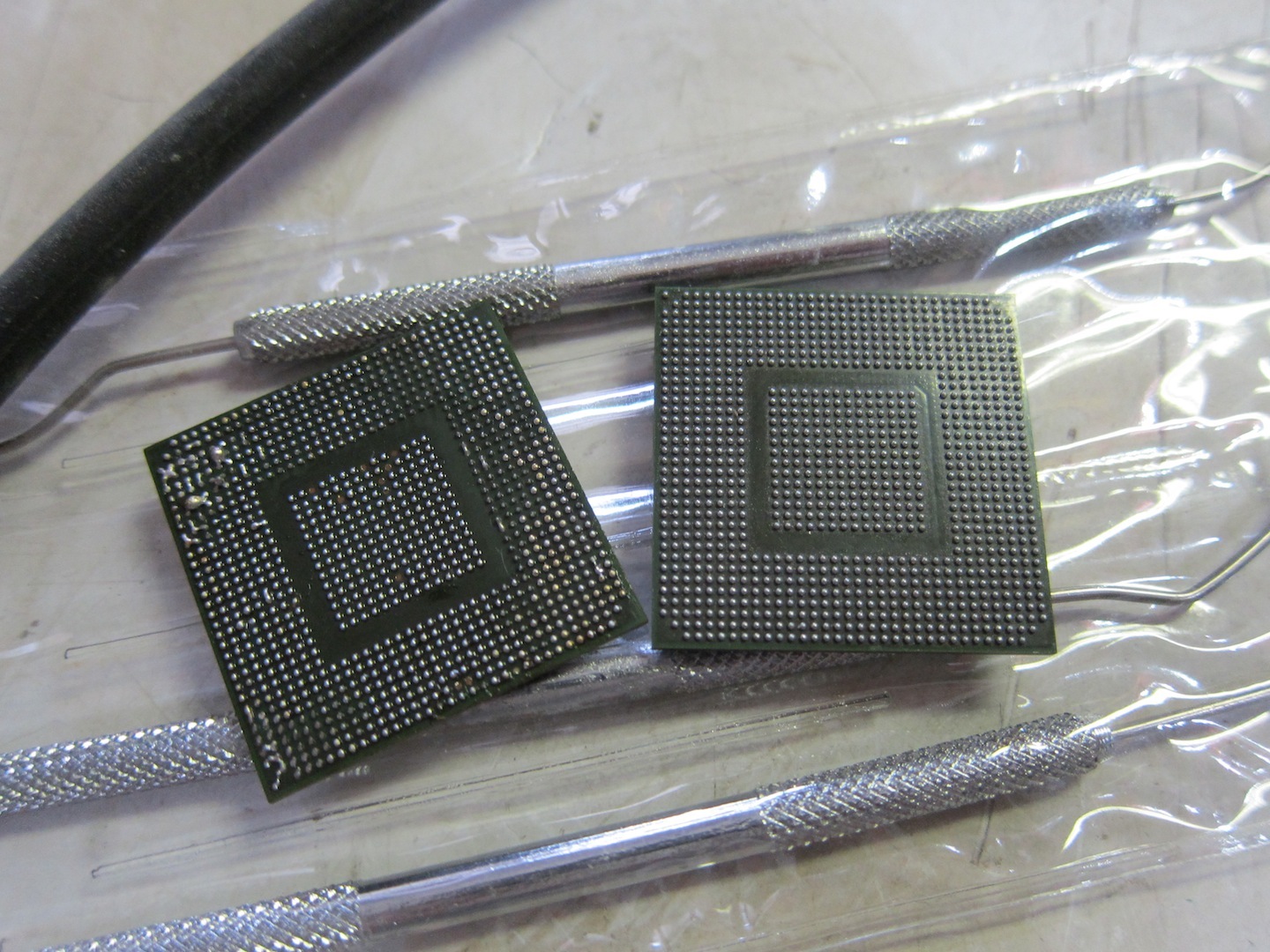

A couple o’ BGAs.

IMG_6860

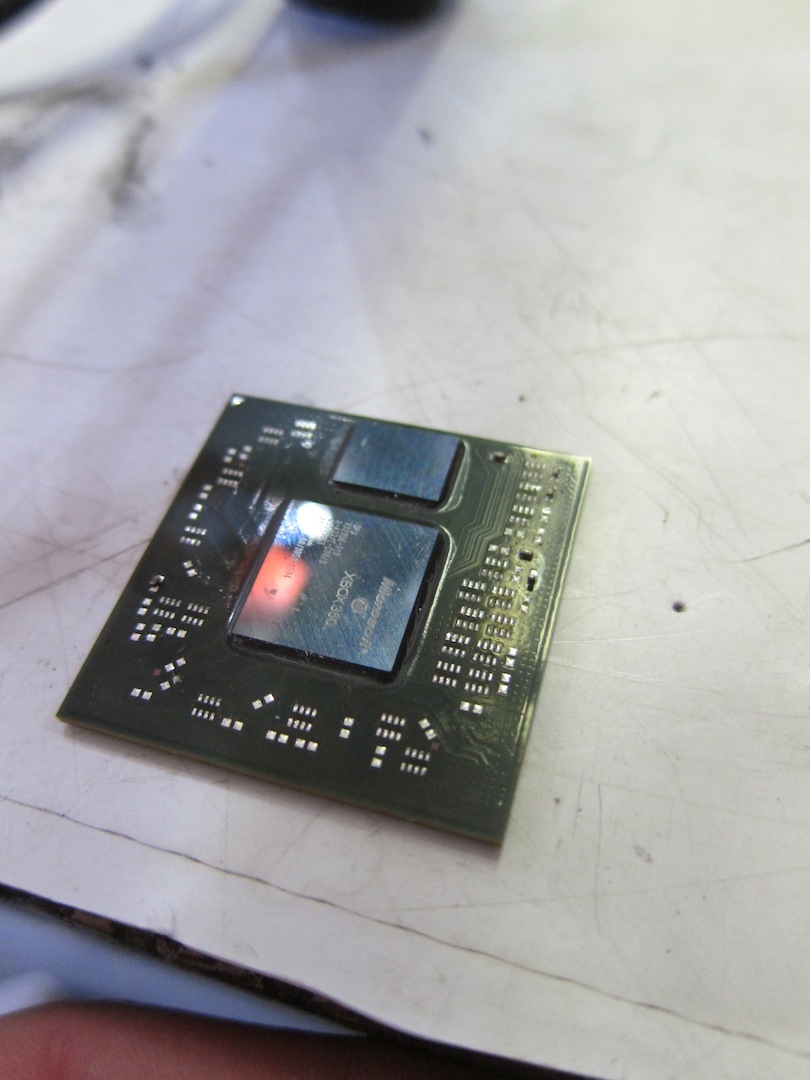

Xbox graphics card mounted on a BGA.

IMG_6862

Soldering a BGA is tricky business and cannot be done by hand, instead calling for the precision of a temperature controlled soldering machine.

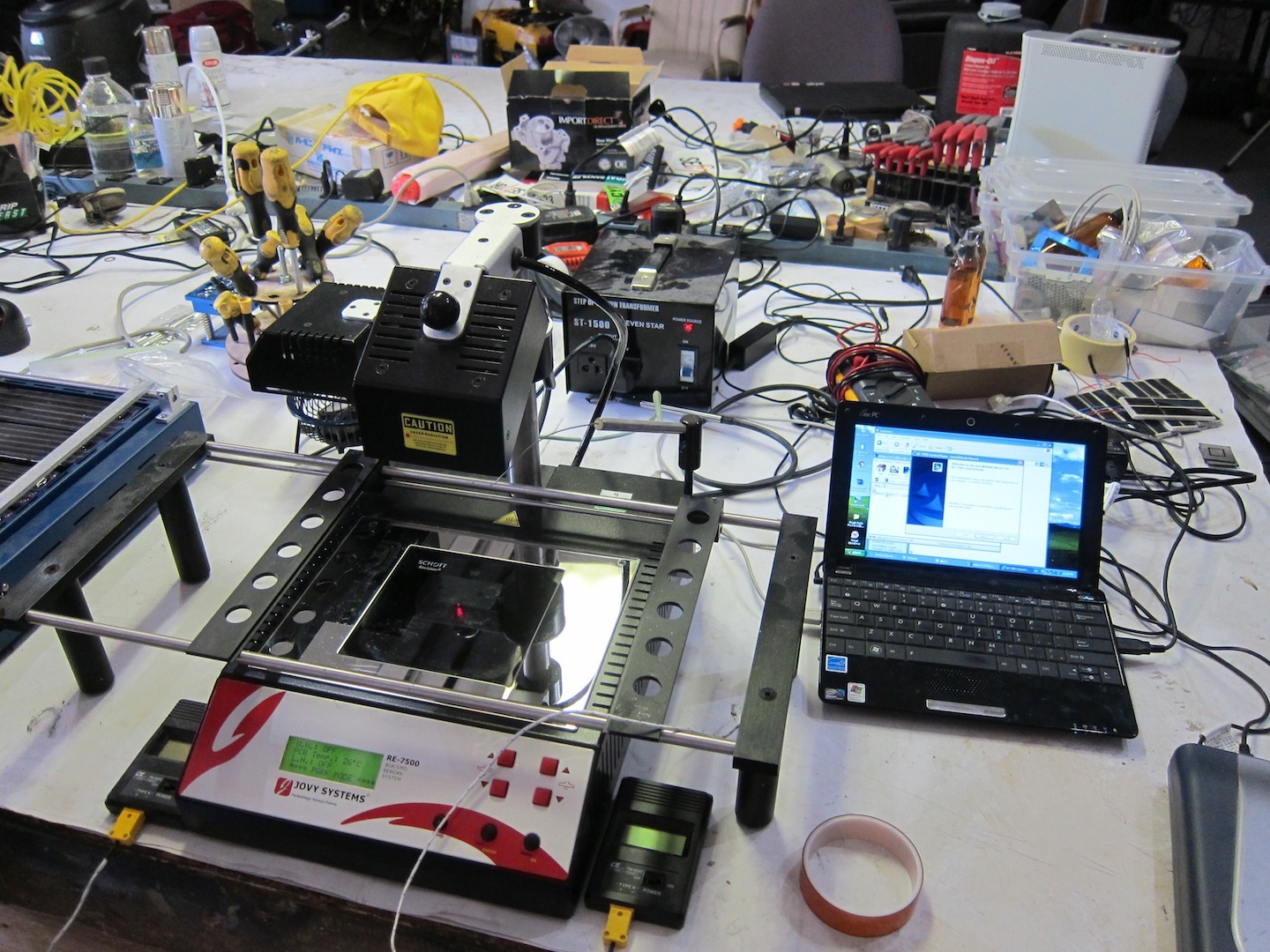

The infrared BGA rework station for soldering is a Jovy Systems RE-7500 model.

IMG_6852

The Jovy RE-7500 at work:

IMG_6857

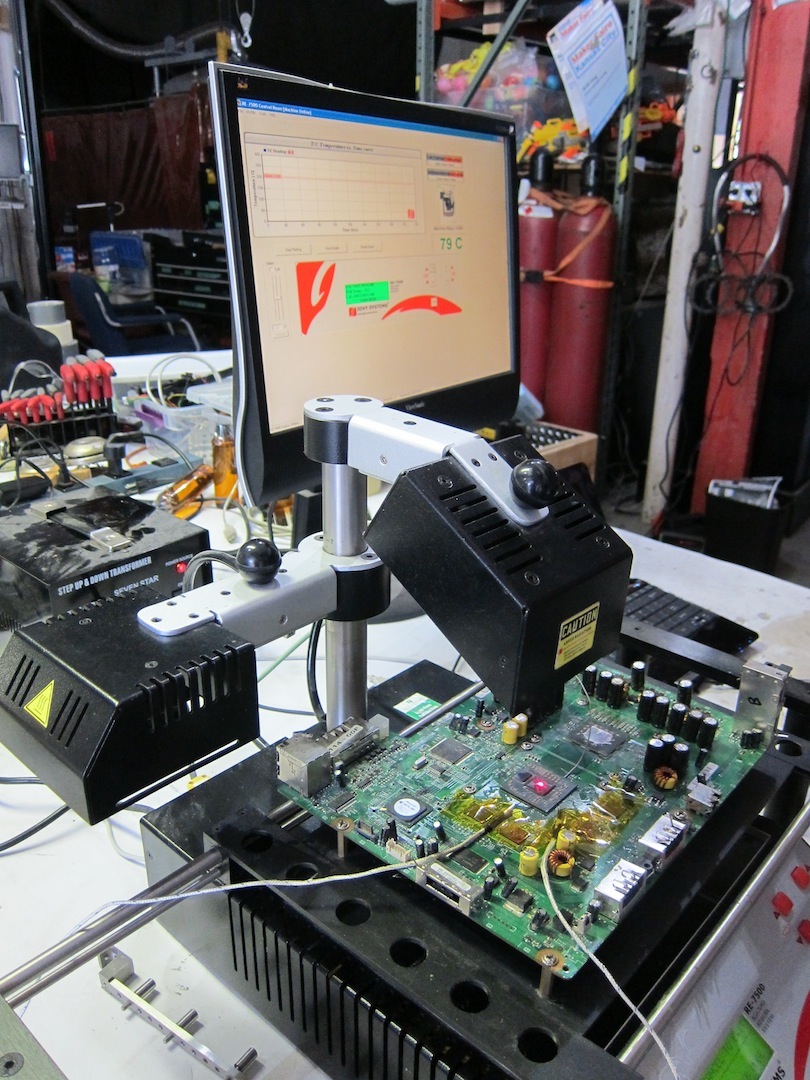

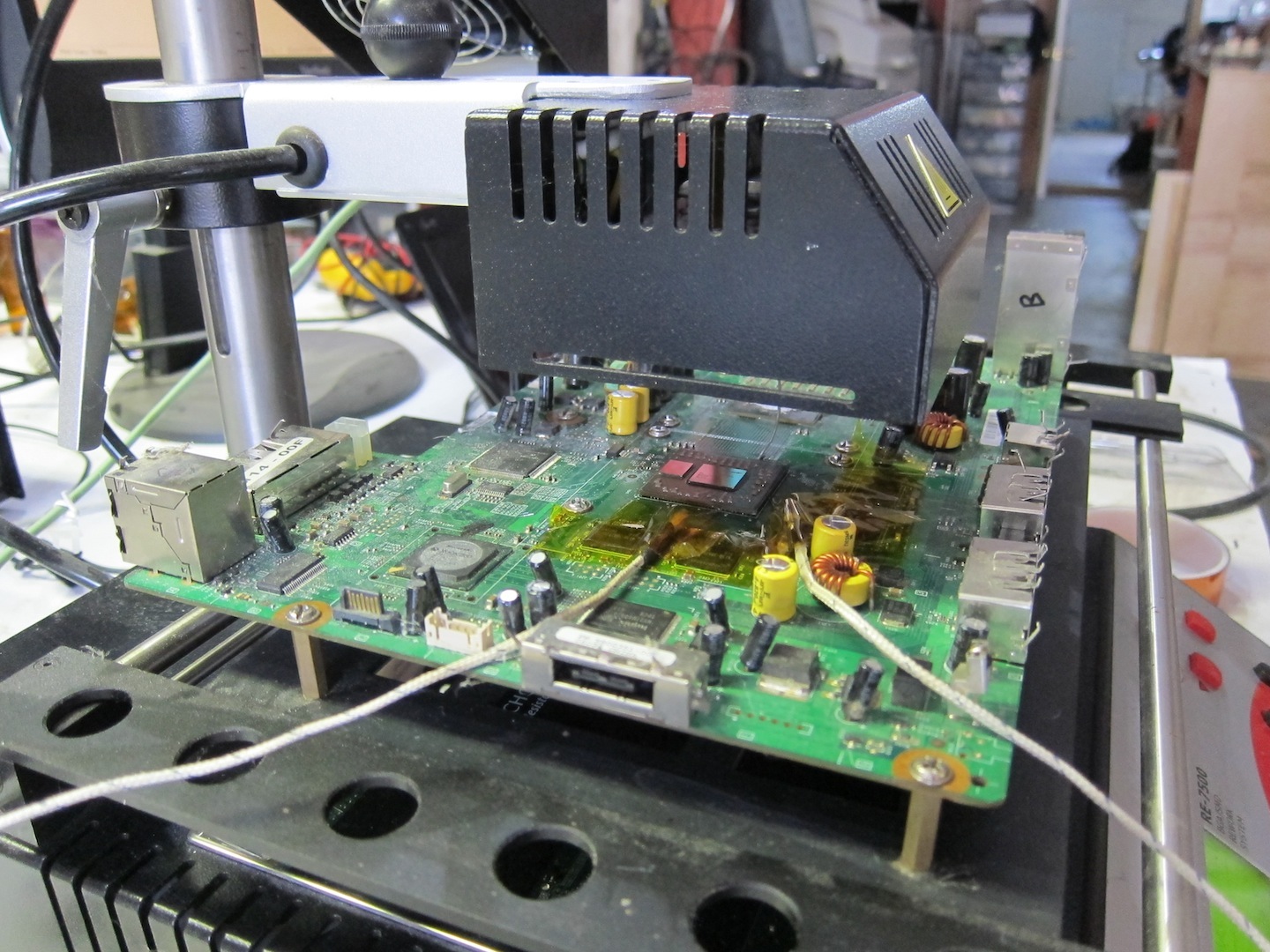

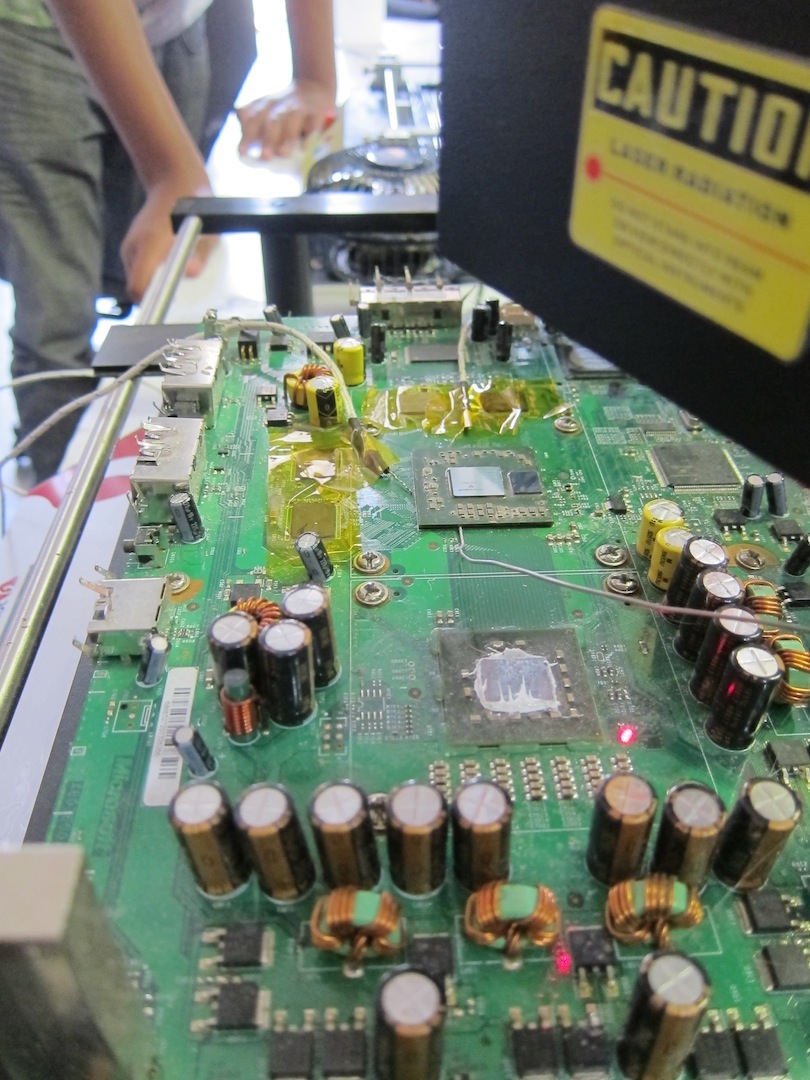

The wires held down by the yellow tape are thermocouples monitoring the temperature.

IMG_6853

IMG_6858

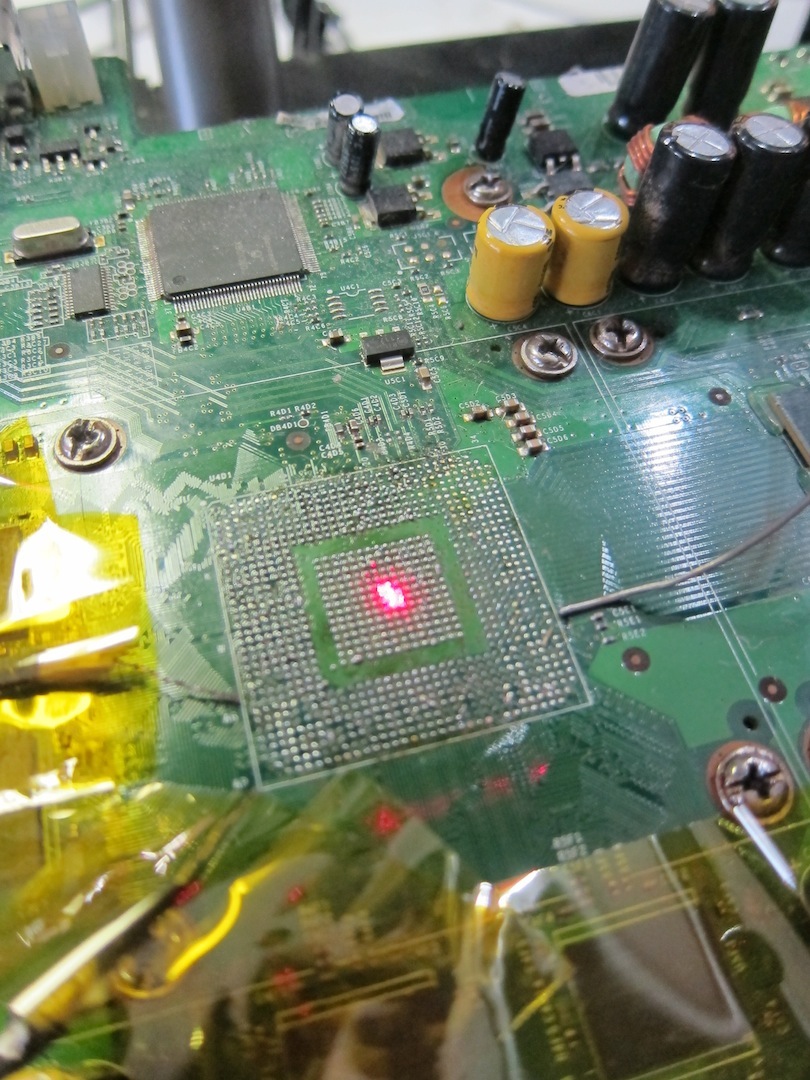

IMG_6859

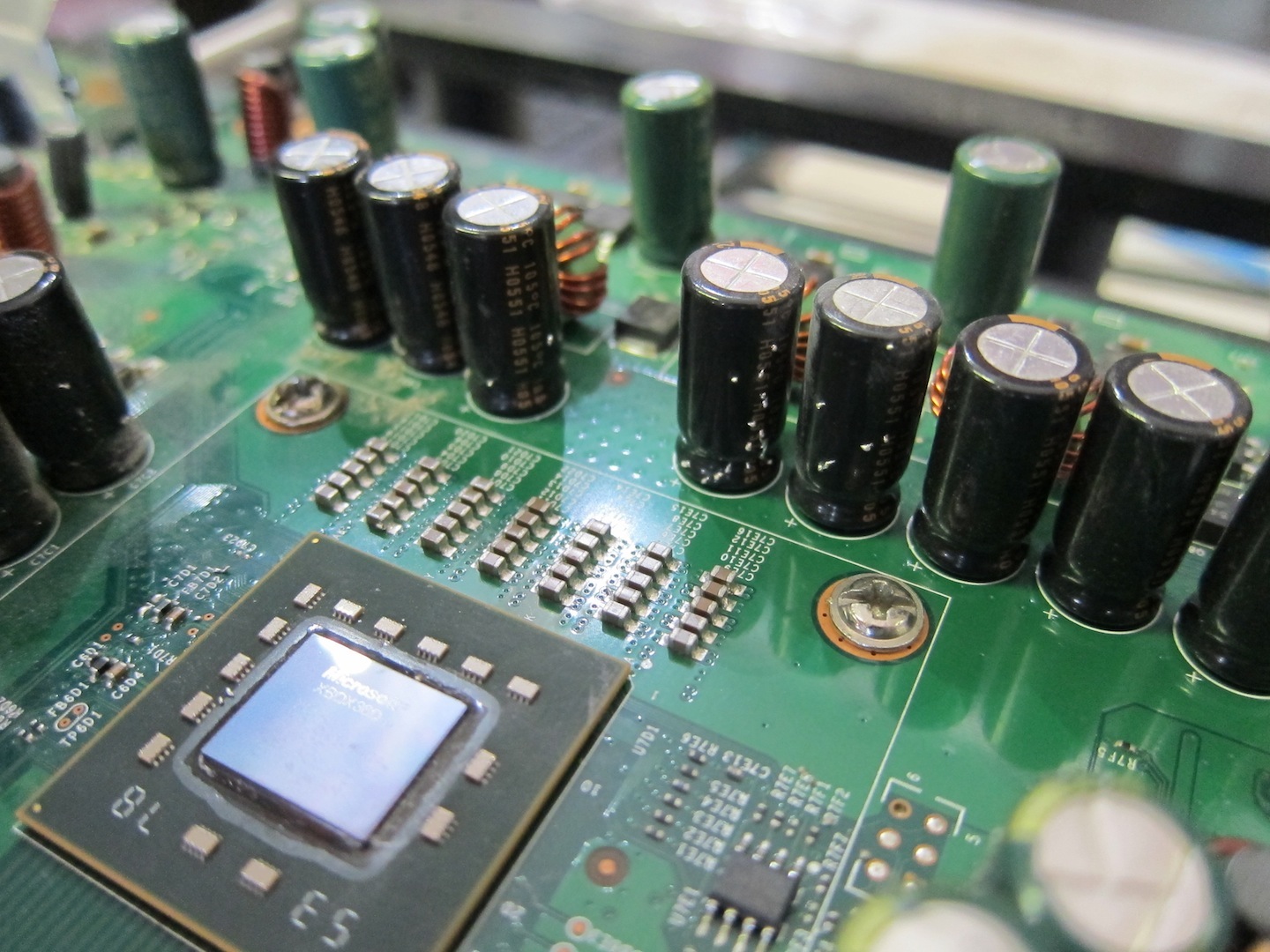

See those white specks? One of the graphics chips was dropped and splattered everywhere.

IMG_6861

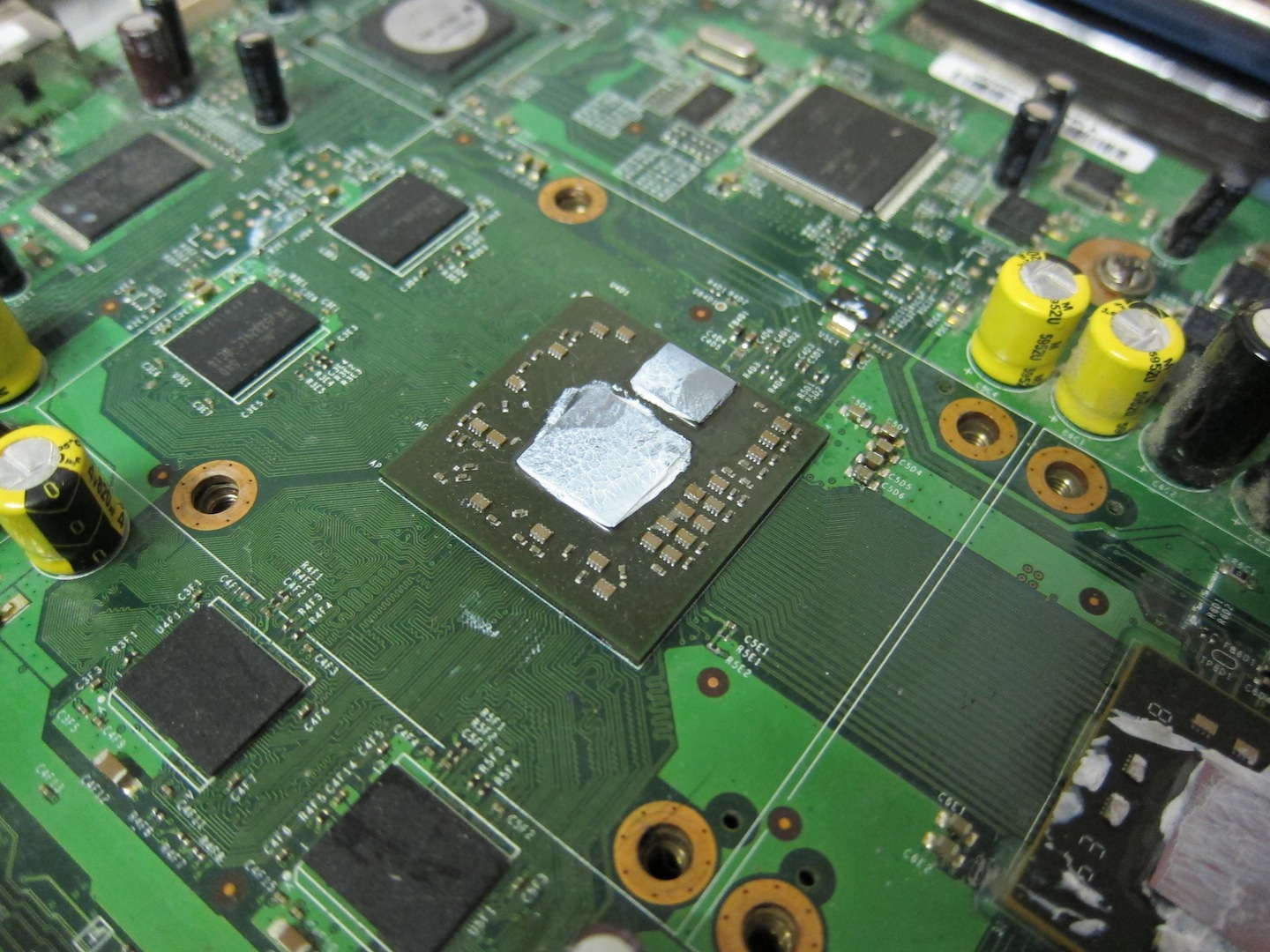

And here is a successful soldering of the BGA chip.

IMG_6963
